"High-Performance Stamping with 220 Ton Yadon Press Line"

Optimized for efficiency, durability, and seamless large-scale operations.

220 Ton Yadon Press Line

This Yadon High-Speed Press Line is a powerful system for high-volume, precise metal stamping. It uses its strength and speed to quickly and accurately form parts from very thin sheets (0.1mm to 1mm), making it ideal for many different products. The facility also has welding equipment specifically for electric motor components (like rotors and stators), allowing for a smooth and efficient transition from making the parts to assembling them. Furthermore, our in-house tool maintenance keeps every die sharp and in top condition, supporting consistent quality and zero-defect output for the automotive, industrial and electric motor industries.

Technical Specification:

Main Mechanical Press J76-220 – 220 Tons of High-Speed Precision

ModelJ76-220
Rated tonnage220 tons
Stroke of Slide30 mm
Strokes per minute120-400 spm
Max. die setting height420 mm
Distance between uprights (L-R*F-B)1940×420 mm
Size of Table (L-R*F-B*T)1900×700
Bottom Size of Slide1900×950 mm
Voltage415V/50Hz/3Phases
Main motor37KW
Air pressure>0.6 Mpa

Double-reel Decoiler

TypeInner-distended Type, Manual
Max Outer Diameter of CoilΦ1200mm
Inner Diameter of CoilΦ460-Φ540mm
Max Width of Coil300mm
Max Coil Weight2×1500Kg

S-type Straightener

Max Strip Width300mm
Suitable Strip Thickness0.2-1.0mm
Speed Range0-60m/min
Motor Drive ModeBy frequency invertor
Feeder Height200±20mm

Feeder (High Speed Servo Feeder)

ModelSNCF-300
Material Width300mm
Material Thickness0.2-1mm
Feeding Speed60m/Min
Release MethodServo Release
Feed DirectionLeft-right

Electrical Components

Servo MotorYASKAWA 4.4kw/1.3kw
Motion ControllerYASKAWA
Low Voltage ComponentsSCHNEIDER
HMI (Human Machine Interface)Proface
EncoderHengstler

Pitch vs SPM (Strokes/Minute) @ 180° Feeding Angle

Pitch <50mmMax 600spm
Pitch <75mmMax 500spm
Pitch <100mmMax 400spm
Pitch <150mmMax 300spm
Pitch <200mmMax 220spm
Pitch <250mmMax 180spm
Pitch <300mmMax 150spm
Pitch <400mmMax 100spm

Other Capabilities

Supporting operations that let us deliver more of your motor assembly from one plant.

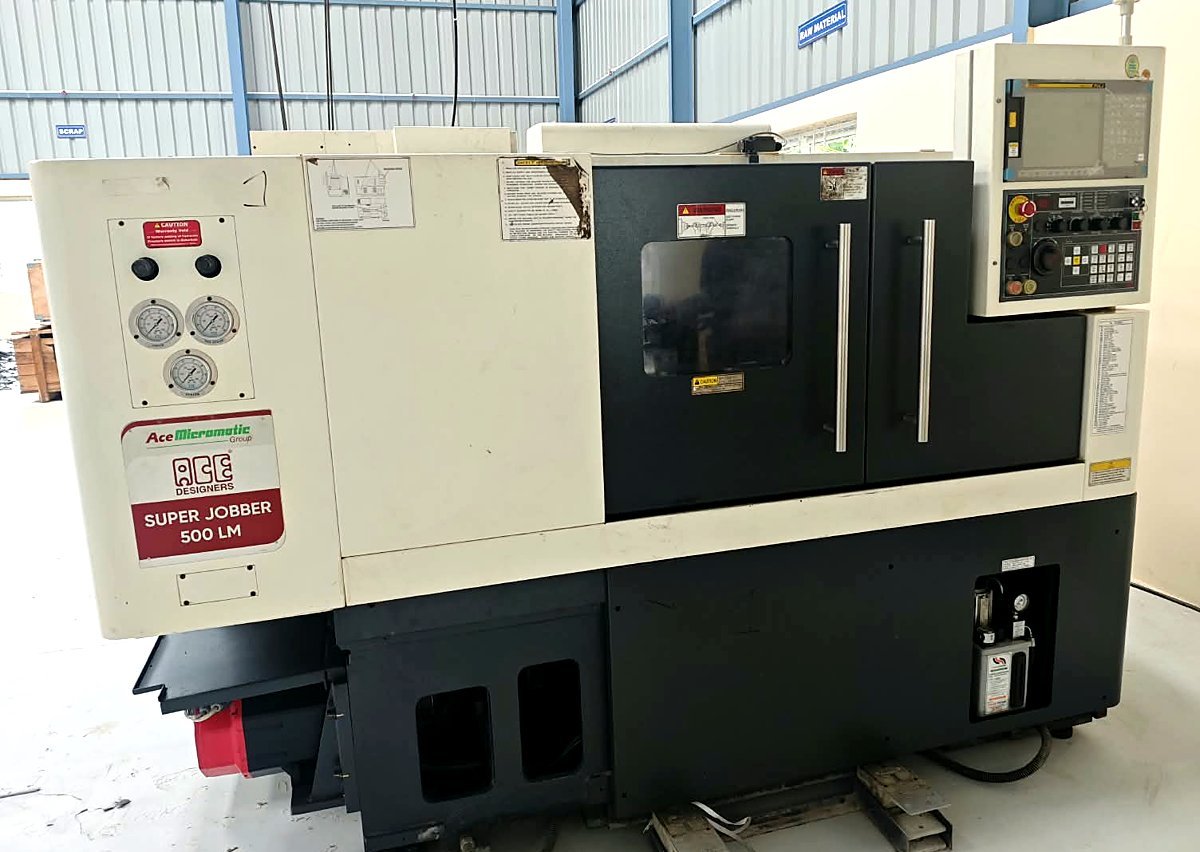

Ace Designers Super Jobber 500 LM CNC turning centre at SNV
01

Rotor Shaft – In-house Manufacturing

We manufacture rotor shafts in-house, so shafts and rotor cores are produced and matched under one roof – giving better control over fit and quality, and shorter lead times.

Machine CNC Turning Centre – Ace Designers Super Jobber 500 LM

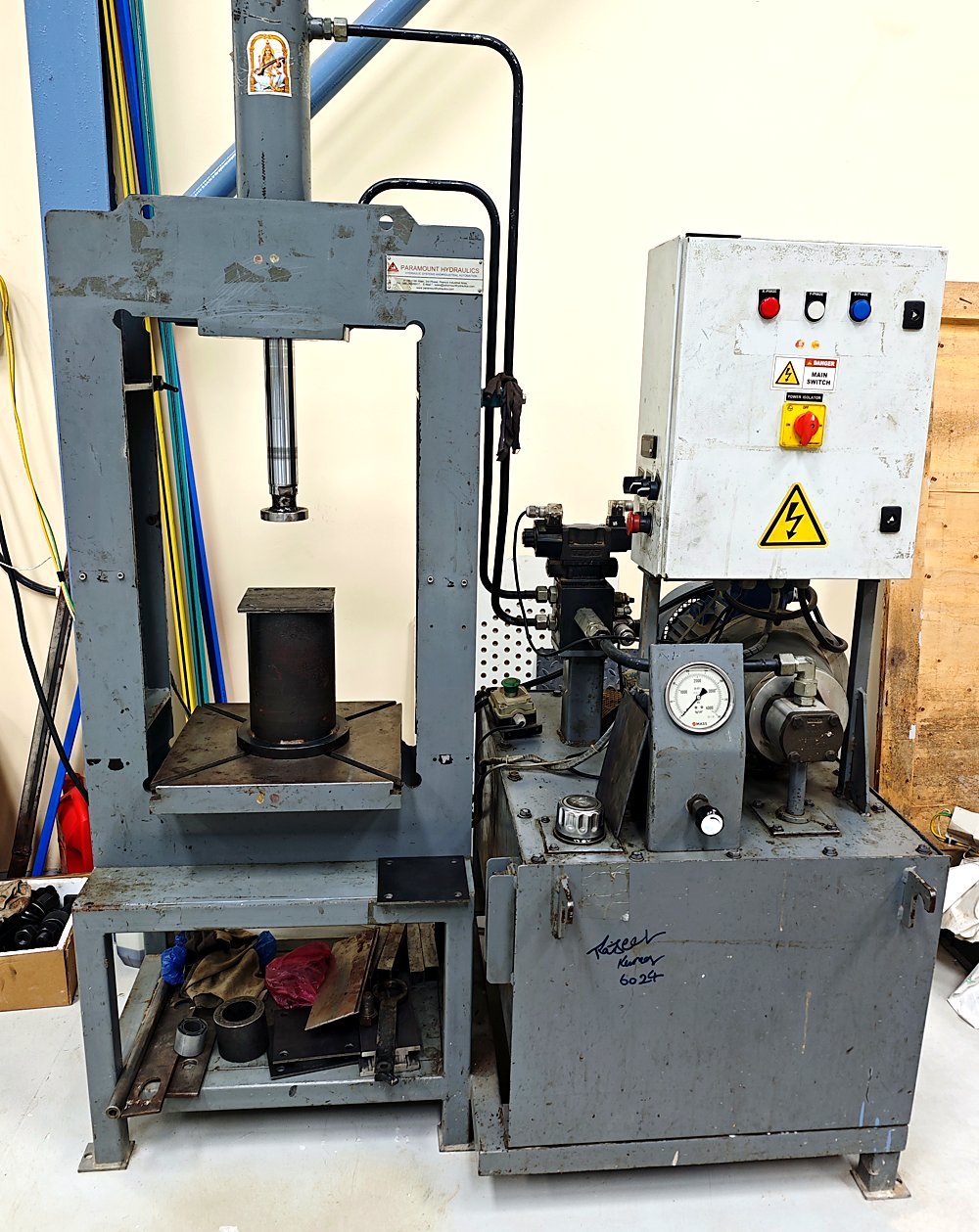

40 ton hydraulic secondary press at SNV
02

40 Ton Hydraulic Secondary Press

A dedicated 40-ton hydraulic press handles secondary operations on stamped parts, keeping these steps in-house instead of outsourcing – faster turnaround and consistent quality.

Machine 40 Ton Hydraulic Press
